Quick exhaust valve
Quick exhaust valve

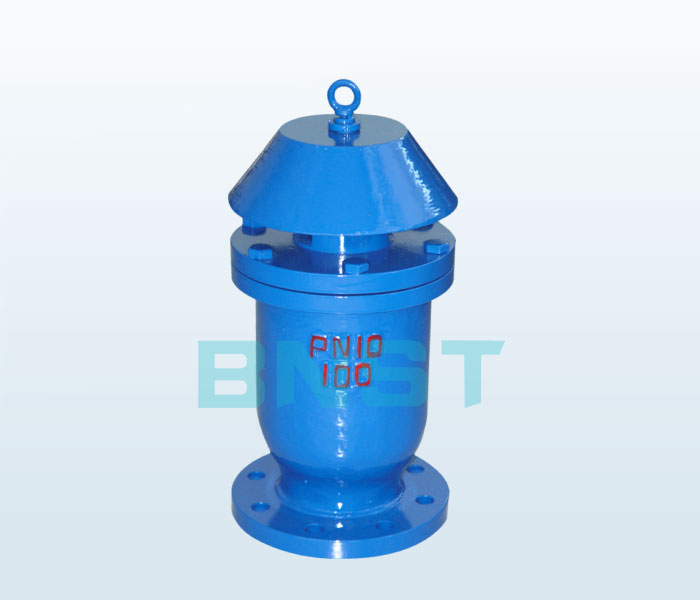

KP-10/P42X quick exhaust (inlet) air valve is suitable for the pipeline with working medium as water to improve the efficiency of conveying water equipment and protect the pipeline from deformation and rupture. Equipment for preparation. The quick exhaust valve is the exhaust for the pressure conveying water pipe.
KP-10 quick exhaust valve overview:
KP-10/P42X quick-discharge (inlet) air valve is suitable for pipelines with working medium as water to improve the efficiency of conveying water equipment and protect pipeline from deformation and rupture. It is an indispensable equipment for pipelines. The quick exhaust valve is the exhaust for the pressure conveying water pipe.
Main features of fast air intake :
1. It can eliminate the gas in the pipeline, feed the resistance and save energy.
2, the exhaust capacity is many times the ordinary two-port exhaust valve.
3. When the pipeline is under negative pressure, the product can quickly and automatically inhale to prevent the pipeline from rupturing.
4, the float ball is stainless steel, long service life, safe and reliable.
Quick intake air intake technical parameters:
1. Use medium: clean water
2. Operating temperature: 0-80°C
3. Shell temperature test pressure:
4. Body material: cast iron, cast steel, stainless steel
5, float ball: stainless steel
Main dimensions of rapid air intake :
Nominal diameter (mm) | Size (mm) | |||||
| H | D | D0 | D1 | D1 | Z-фd | |
| 50 | 270 | 160 | 200 | 125 | 125 | 4-14 |
| 65 | 270 | 180 | 200 | 145 | 145 | 4-18 |
| 80 | 330 | 195 | 230 | 160 | 160 | 4-18 |
| 100 | 350 | 215 | 250 | 180 | 180 | 8-18 |
| 150 | 450 | 280 | 300 | 240 | 240 | 8-23 |
| 200 | 470 | 335 | 330 | 295 | 295 | 8-23 |
